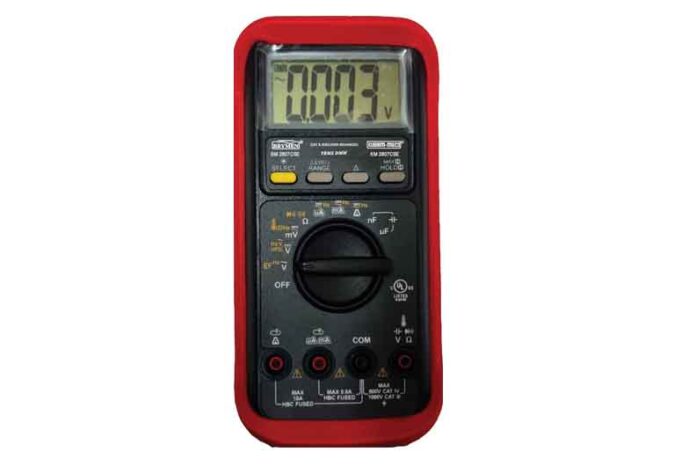

KUSAM-MECO has recently added a new ‘UL’ listed Multimeter model KM 2807 CSE. It has 3-5/6 digits 6000 counts LCD display.
The update rate is 5 per second. It is TRMS sensing. The safety category is CAT III 1000V and CAT IV 600V. The Transient protection is 8 KV. It meets EMC standard EN61326 1:2013. The overload protection in mV, Ohm, and other ranges is 1000 V DC/AC rms. The special features are VFD-AC Voltage, VFD-Hz, Hi/Lo EF Detection (NCV & Single pole); Display Hold. w/Hold-alert warning, MAX Hold, BeepLit Diode Test, w/BeepPass indication, BeepLit Continuity; Relative-Zero Mode; Backlighted LCD display, BeepJack audible & visible input warning. It measures AC Voltage 0.01mV ̴1000V; VFD-ACV (with Low Pass Filter) 10 ̴400 Hz, DC Voltage 0.01 mV to 1000V. Resistance 0.1 ohms to 60.00 Mega ohm; Capacitance from 0.01nF to 2000µF. Diode Test; DC Current from 0.1µA to 10.00A, AC Current from 0.1µA to 10.00 A, Logic Frequency 5.00Hz-300.0KHz. Temperature -40 to 400°C. Line frequency 10Hz-50KHz. Non-Contact EF 15V ̴1000V. The instrument is powered by 2 x 1.5V AAA Size battery. The instrument weight is 400 gms(without battery). It is supplied with optional manual, batteries, Test Leads, Thermocouple, Carrying case.
For more details:
Email: sales@kusam-meco.co.in;
Website: www.kusamelectrical.com
