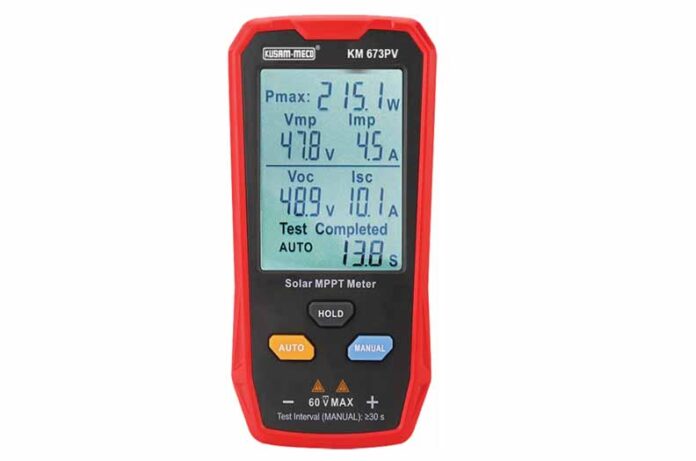

Due to the rising demands for Solar Panels, new technology is developed for Solar Panel manufacture, installation and testing. Kusam-Meco has introduced a new instrument MPPT Meter / Maximum Power Point Tracker) which is an electronic DC to DC convertor that optimizes the match between the solar array (PV panels) and the Battery or utility grid.
- It can measure the maximum power of solar module rapidly.
- It measures the open circuit voltage, short circuit current, at the same time and display all the parameters on the screen.
- It indicates if a solar panel generates power in low efficiency.
It is a very useful instrument for solar panel manufacturing and also for Users. It can measure the Maximum Power (5-800 W), Peak Power Voltage 12 to 60 V, Peak Power Current 0-35 Amps, Open Circuit Voltage -12 to 60 V, Short Circuit Current 0-35 A. It has large LCD screen (52 x 66 mm). Simultaneous display of all parameters. Manual and Auto Test modes, Data Hold function, over range indication. It is powered by the Solar Panel under test. It is supplied with carrying case, MC4 cables, MC4 connector wrench, User Manual.
For more details: Email – sales@kusam-meco.co.in;
Website: www.kusamelectrical.com
