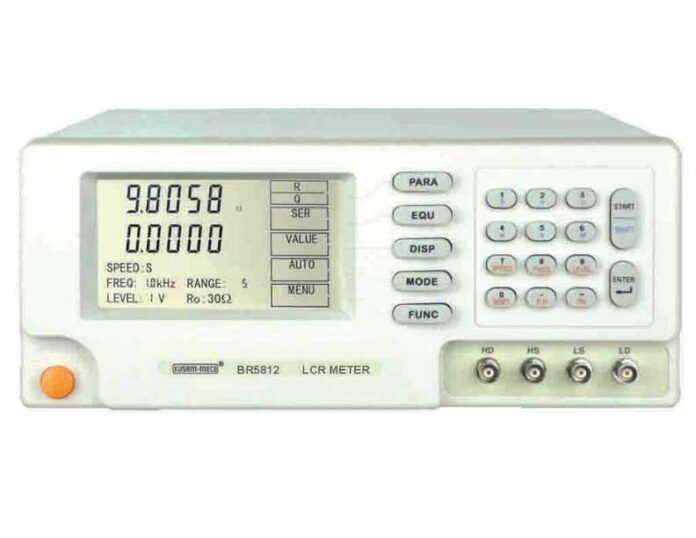

KUSAM-MECO has introduced a new Bench Top LCR meter model BR 5812. It is more versatile than model KM 5810. The measuring Frequencies are 100 Hz., 120 Hz, 1KHz, 10 KHz, 20 KHz, 30 KHz, 60 Khz, 100 KHz. It has a special large white backlight LCD display screen. It has 3 test levels 0.1.V, 0.3 V, 1.0 V . It has 2 signal source output test level 30 Ohms and 100 Ohms. It has RS 232 interface. The test parameters are L/C/D, R/Q, Z, C/R, L/R. The measurement accuracy is typically 0.1%. The measurement range of the various functions is: Z, R, X.: 0.0001 Ohms to 99.999 Megohms.
Capacitance is: 0.001 pF to 99999micro Farad. Inductance: 0.001 micro Henry to 99999 Henry. D: 0.0001to 9.9999. Q: 0.0001 to 9999.9 Delta % : -99.99% to 99.99 %. It has 3 measurement speeds Slow (2) Medium (8) Fast (16). It provides for Equivalent Circuit: Series & Parallel. It has Auto & Manual ranging mode. The Display Digits is 5. It has Comparater functions NG, P1, P2, P3, 4 bins. The Auxillary Power supply required is 110-127 Volts AC+- 10%, 220-240 V AC +- 10%. 50/60 Hz. +- 2 Hz.
For more details: Email – sales@kusam-meco.co.in;
Website: www.kusamelectrical.com
