Smart Metering Solutions

Operational costs are on a steep rise due to the escalating power tariffs and power shortages.

Operational costs are on a steep rise due to the escalating power tariffs and power shortages. Any reduction in these day to day expenses would help you to improve your operation and at the same time improve your profits and efficiency. Energy conservation through effective energy management is hence gaining increasing attention in recent times. DEIF’s metering solutions can benefit you in your efforts to reduce the operational expenses.

  DEIF, Danish Electro Instruments Factory, has the experience of making meters for over seven decades and providing metering solutions for simple applications to most rugged applications with focus on precision and robustness. DEIF offers wide range of meter program for absolute energy measurement as well as for energy and power quality measurement. Come to us for a comprehensive solution that will empower you with accurate measurement and analysis for cutting your energy bills. DEIF’s superior quality products are designed with flexible functionality to comply with relevant standards and manufactured under stringent quality control procedures with testing under the harshest conditions. DEIF’s products employ the state-of-the-art technologies and up gradation of the products through continuous R&D initiative. Customers know and prefer us for our 24/7 service and support, customised applications as well as training programs.

Identify your energy consumption

 To reduce your energy costs you need to measure and monitor by analysing your actual energy consumption. Based upon this information you can then take necessary evasive action. Take the right path to take your decision making to a higher level through factual information, about where you can optimise your energy consumption.

Smart meters

 DEIF offers a complete range of modular energy and power meters with communication ports. Our advanced metering solutions connected to a centralised place, which could be our HMI (AGI 100) or any other SCADA, allow remote monitoring of parameters giving you instant access wherever you are.

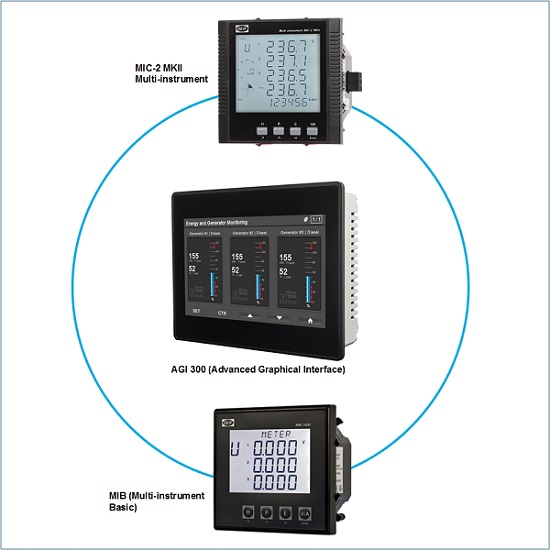

MIC-2 (Multi-Instrument Communication)

  Versatile and intuitive, DEIF’s multi-instrument MIC-2 is perfectly suited for monitoring more than 50 parameters which includes power quality analysis (voltage and current harmonics) and comes with accuracy class 0.2% for voltage, current and frequency and 0.5% for power, power factor and energy. A microprocessor-based measuring unit for most electrical quantities on 2-phase or 3-phase electric energy distribution networks, readings are displayed on a large built-in LCD screen for analysis of all types of power systems. It has three optimal input output modules and communicates through Modbus, TCP/IP and Profibus that allow you to view readings remotely. You can also specify and setup your own 16 different alarms using free utility software with data logging facility.

MIB (Multi-Instrument Basic)

  For economical solutions we also have basic multi-instrument with limited functionality, depending upon your need. A large number of standard analogue instruments can be replaced by the MIB in all electrical measuring applications. The MIB contains all necessary measuring circuits and presents all values on a display with white backlight. The MIB can be used in almost all 3-phase network topologies with/without neutral and with both balanced and unbalanced load.

AEM (Advanced Energy Meter)

  Advanced Energy Meters are single or three-phase energy meter, for up to 80A direct metering. Its compact, modular design makes it suitable for DIN mounting in a MCB distribution board. AEM can be set up to communicate with different types of communication facilities namely, LAN, Modbus RTU/ASCII, MBus, and KNX interfaces which are used to analyse the energy consumption to reduce the running cost to a minimum for industrial plants and buildings like offices, hospitals, universities etc. A 2 GB SD is included for data logging.

BEM (Basic Energy Meter)

  To satisfy OEM industry’s need for high-quality, cost-effective energy meters, we also supply basic energy meters, BEM, which offers accuracy class 1 for active energy (according to EN 50470-3). The energy meters have been fitted with an LCD display for easy reading, which can show imported or exported kWh in two tariffs. The Phases Sequence Error indicator indicates faulty mounting of the display.

Continued savings

DEIF is your best partner for selecting measurement solutions that deliver maximum return on your investment. The average customer finds that DEIF meters pay for themselves through savings in less than a year. When investing in DEIF’s measurement products and solutions you are receiving the best technology, reliability and service in
the business.
