Capacitors are essential components in electrical and electronic circuits. They store and release electrical energy in the form of an electric charge more like springs or fly wheels in mechanical devices. The basic structure of a capacitor consists of two conductive plates separated by an insulating material called the dielectric. Capacitors come in various sizes, shapes, and types, each suited for specific applications.
Basic Functionality of Capacitors
- Charge Storage: Capacitors store electrical energy when a voltage is applied across the plates.
- Discharge: The stored energy is released when the capacitor is connected to a circuit.
- Capacitance: The amount of charge a capacitor can store is measured in farads (F), but most practical capacitors have values in microfarads (µF), nanofarads (nF), or picofarads (pF).
Applications of Capacitors
Capacitors are versatile components used in various fields.
- Energy Storage: Capacitors store energy and release it when needed, such as in camera flashes, backup power systems, or Uninterruptible Power Supplies (UPS).
- Filtering: In power supplies, capacitors smooth out voltage fluctuations (ripples), converting pulsating DC into more stable DC.
- Coupling and Decoupling: Capacitors block DC signals while allowing AC signals to pass, used in amplifiers and signal processing.
They also decouple noise from power lines in circuits.
- Tuning Circuits: In radio-frequency circuits, variable capacitors adjust the resonant frequency, tuning radios or communication devices.
- Power Factor Correction: In industrial settings, power capacitors improve power factor, reducing losses in AC power systems.
Capacitor Specifications
When choosing a capacitor for a specific application, several key parameters must be considered.
- Capacitance Value (F): Indicates how much charge the capacitor can store.
- Voltage Rating (V): Maximum voltage the capacitor can handle before breakdown.
- Equivalent Series Resistance (ESR): Resistance due to internal factors; important in power applications.
- Tolerance: The acceptable variation in capacitance from the stated value (e.g., ±10%).
- Leakage Current: The small amount of current that flows through the dielectric over time.
- Temperature Stability: Some capacitors are designed to maintain stable capacitance over a wide temperature range.
Power capacitors, also known as high-voltage capacitors or power factor correction (PFC) capacitors, are designed for use in electrical power systems. They are built to handle high voltages, high currents, and to improve the efficiency and stability of electrical networks. The key features and types of power capacitors have been presented hereafter.
- High Voltage Handling: Power capacitors are designed to withstand and operate in high-voltage environments, often ranging from hundreds to thousands of volts.
- Large Capacitance Values: These capacitors have relatively large capacitance values compared to typical capacitors used in signal processing.
- Power Factor Correction: They are commonly used to improve the power factor in electrical power distribution systems by reducing the reactive power in the system.
- Energy Storage: Power capacitors can store energy for use in stabilizing voltage levels and providing short-term backup power in large systems.
- High Reliability: Built for long-term operation, with a focus on durability under continuous high-stress conditions.
Types of Power Capacitors
Shunt Capacitors:
- Used for power factor correction in industrial and utility power systems.
- Reduce reactive power, lower electricity bills, and increase the efficiency of electrical networks.
- Installed parallel to the load.

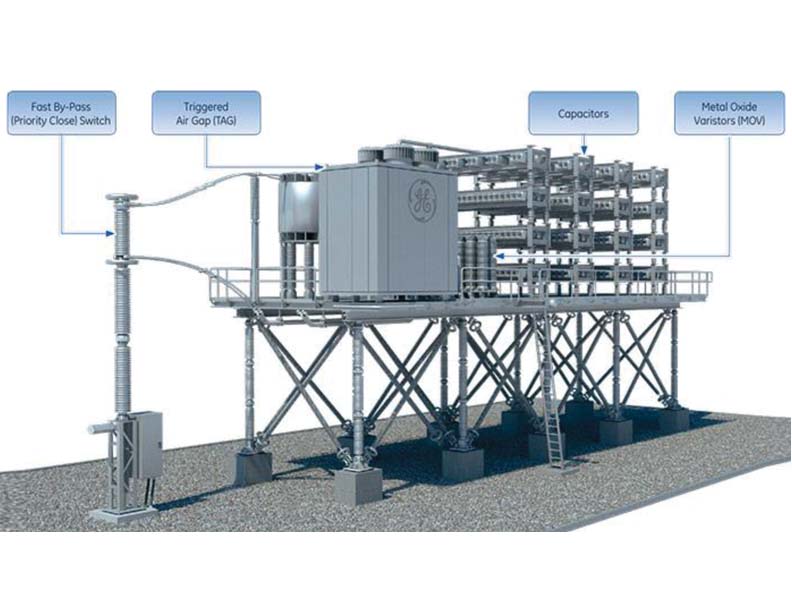

Series Capacitors:
- Installed in series with power lines in long-distance transmission systems.
- Compensate for inductive reactance, improving voltage stability and increasing the transmission capacity of the power line.
Harmonic Filter Capacitors:
- Designed to eliminate or reduce harmonic distortion in power systems caused by non-linear loads (like variable frequency drives, UPS systems).
- These capacitors are used in combination with inductors to form harmonic filters.
Surge Capacitors:
- Used to protect transformers, generators, and motors from voltage surges caused by switching transients or lightning strikes.
- Absorb excess voltage spikes to prevent equipment damage.
DC Link Capacitors:
- Found in power electronics applications, particularly in DC circuits.
- Store energy and smooth out DC voltage in power converters and inverters.
Power Film Capacitors:
- Use plastic films as the dielectric.
- Common in power factor correction, pulse discharge applications, and high-voltage power supplies.
- Known for their durability, low losses, and stable performance in high-frequency circuits.
Applications of Power Capacitors
- Power Factor Correction: Installed in factories, substations, and commercial buildings to improve power factor and reduce electricity costs.
- Transmission Line Compensation: In high-voltage transmission lines, power capacitors are used to improve line efficiency and stability.
- Motor Start/Run Capacitors: Capacitors used in motors to improve efficiency and provide the initial torque needed to start or run large motors.
- Energy Storage Systems: Power capacitors are used in systems that require short-term high-energy storage for grid stabilization or renewable energy integration.
- Power Supplies and Converters: Used in high-voltage power supplies and energy conversion systems for industries and heavy equipment.
Power capacitors are essential for optimizing the efficiency and reliability of electrical power systems, both in industrial and utility environments.
Issue Areas for Research
Here are some key research and issue areas.
Dielectric Materials and Energy Density
- Research Focus: The development of high-performance dielectric materials is a primary area of research. New materials like ceramic, polymer, and hybrid composites aim to improve the energy density, dielectric strength, and thermal stability of capacitors.
- Issues: Traditional dielectric materials (e.g., polypropylene or oil-impregnated paper) have limitations in energy density and long-term stability, especially under high temperatures and voltages.
Capacitor Aging and Failure Mechanisms
- Research Focus: Investigating the root causes of capacitor degradation, including thermal stress, overvoltage, dielectric breakdown, and partial discharge. Condition monitoring and diagnostic tools to predict failure are becoming increasingly important.
- Issues: Aging capacitors may lead to insulation breakdown, reducing efficiency and increasing the risk of catastrophic failure in the grid. Understanding how environmental factors and operating conditions influence capacitor lifespan is vital.
Power Factor Correction and Reactive Power Compensation
- Research Focus: Power capacitors are essential for Power Factor Correction (PFC) in industrial and utility systems. Ongoing research aims to optimize PFC capacitor banks to reduce losses and improve energy efficiency.
- Issues: Incorrect sizing or placement of power factor correction capacitors can result in overcompensation or undercompensation, causing voltage instability and additional losses.
Integration with Renewable Energy Sources
- Research Focus: Capacitors play a crucial role in stabilizing power output from renewable energy sources like wind and solar by providing reactive power support and smoothing voltage fluctuations.
- Issues: Renewable energy sources introduce variability and intermittency into power systems. Capacitors need to adapt to rapid voltage fluctuations and dynamic loading conditions, requiring improved design and control strategies.
Harmonic Filtering and Power Quality
- Research Focus: Power capacitors are used in passive and active harmonic filters to eliminate harmonics and improve power quality. Research is focused on developing capacitors that can handle high harmonic currents and voltages without overheating or losing efficiency.
- Issues: Harmonic distortion from non-linear loads (e.g., industrial drives, inverters) can reduce the lifespan of capacitors and increase power losses. Effective design to avoid resonance between capacitors and inductive components is a challenge.
Capacitor Bank Design and Control
- Research Focus: Smart capacitor banks with advanced control systems are being researched for better performance in real-time voltage regulation and adaptive reactive power support in dynamic grid environments.
- Issues: Inflexible or poorly controlled capacitor banks can lead to voltage instability, unnecessary switching operations, and reduced efficiency. Advanced control algorithms and integration with smart grids are required.
Environmental and Safety Considerations
- Research Focus: Reducing the environmental impact of capacitor manufacturing and disposal is an ongoing challenge. The shift towards non-toxic, recyclable materials is a growing area of interest.
- Issues: The use of hazardous materials, such as Polychlorinated Biphenyls (PCBs) in older capacitors, poses environmental and health risks. Modern capacitors need to comply with stricter environmental regulations without sacrificing performance.
High-Voltage and Ultra-High Voltage Capacitors
- Research Focus: As power transmission systems expand and move toward higher voltage levels, the development of capacitors that can operate reliably at Ultra-High Voltages (UHV) is critical.
- Issues: High-voltage capacitors face issues such as partial discharge, insulation breakdown, and corona discharge, which can lead to early failures. Improving the insulation technology and breakdown resistance is a key research area.
Thermal Management
- Research Focus: Advanced cooling techniques and thermal management systems are being studied to improve the efficiency and lifespan of power capacitors, especially in high-power applications.
- Issues: High temperatures due to continuous operation or high-frequency switching can lead to dielectric failure. Better thermal design and materials with higher thermal conductivity are needed to dissipate heat effectively.
Energy Storage Applications
- Research Focus: Power capacitors are being explored for their potential in grid-scale energy storage, particularly in applications where rapid charge/discharge cycles are needed.
- Issues: Capacitors traditionally have lower energy storage capacity compared to batteries, limiting their use in large-scale energy storage. Research into supercapacitors and hybrid systems seeks to address this.
Power capacitors are evolving to meet the needs of modern, smart, and renewable-integrated power systems, but they face challenges in terms of durability, efficiency, and environmental impact. Continued research into materials, design, and control will be essential for their future development.
